Gallery: Building PAC Version 2 (2008)


Mouse over for caption, click to enlarge.

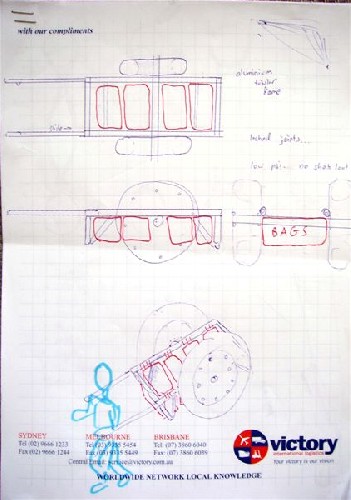

PAC2 concept sketch

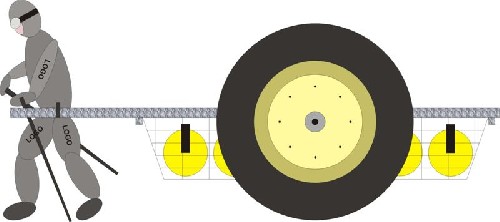

Chris\'s CAD drawing of PAC2

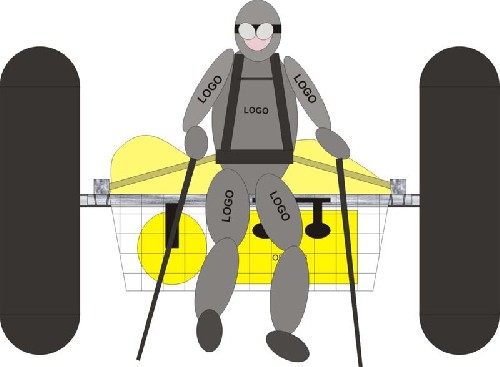

Chris\'s CAD drawing of PAC2 - Front view

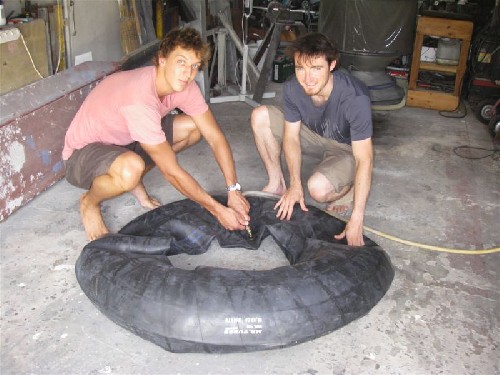

Maybe we can use tractor inner tubes for the wheels!?

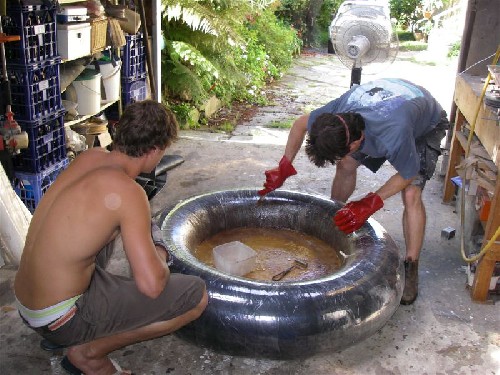

Making a quick fiberglass and plywood rim to test the tube
Testing the tubes for the first time, hauling over tree-root obsticle

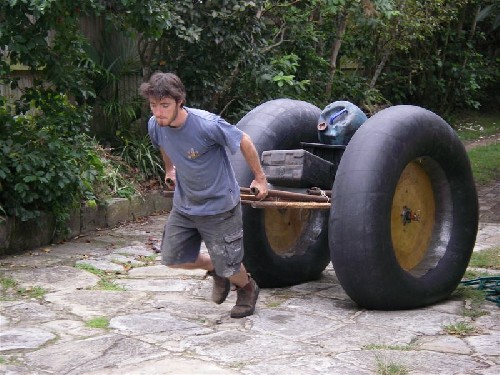

Testing hauling tubes loaded up with expected 200kgs

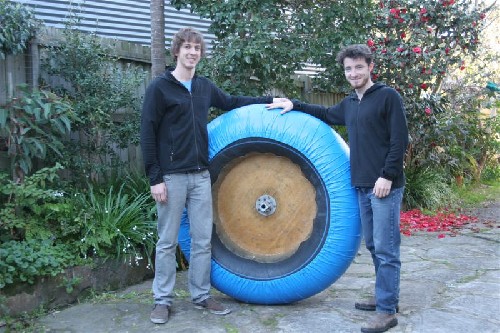

Test of fabric wheel cover from blue tarp (will be bullet proof Kevlar) to make tubes puncture resistant

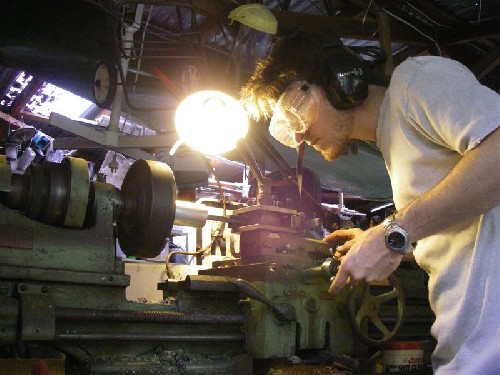

Chris turning up PAC axle parts on late
Chris and Clark sewing Kevlar cover for PAC tyres
Chris cutting the aluminium load arms for the PAC

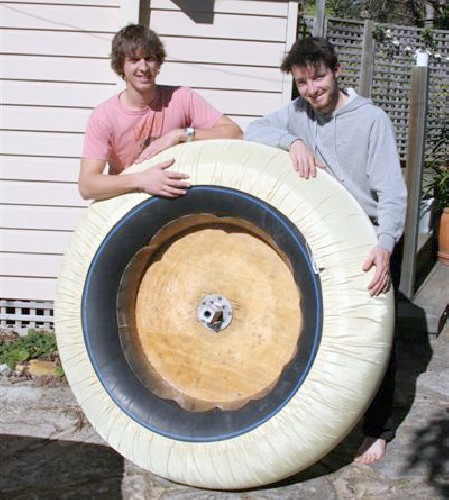

Chris and Clark with their bullet-proof kevlar wheel cover
Clark sewing up first prototype Kevlar wheel cover

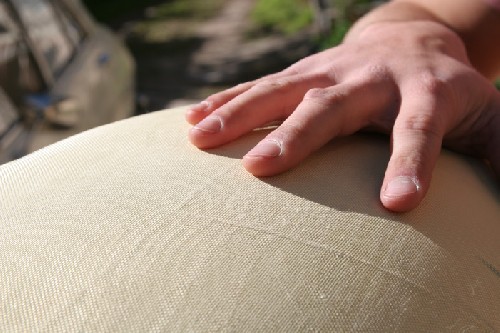

Close-up of Kevlar wheel cover fabric
Cutting bolts on wheel hub to save weight

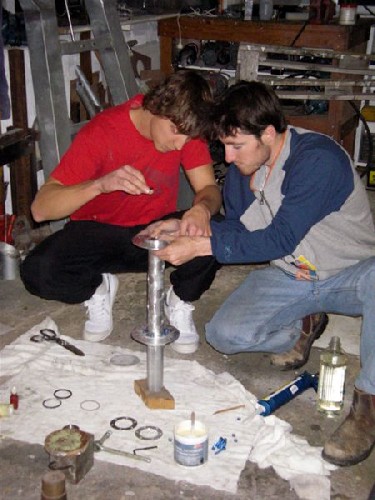

Chris and Clark assembling their wheel hubs

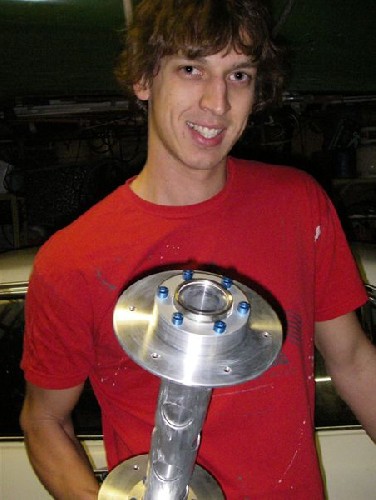

Clark holds up a newly assembled wheel hub
Clark hacksawing aluminium load arms for PAC2

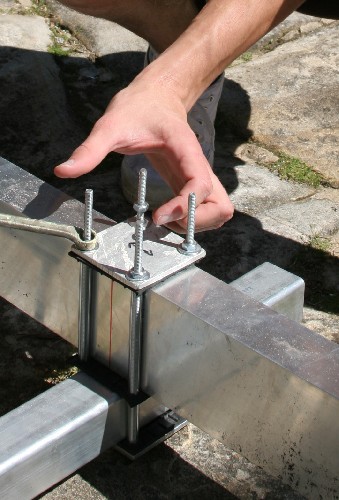

Our rubber-clamp joining system to hold axle onto frame
Clark filing the spacer bar between the load arms

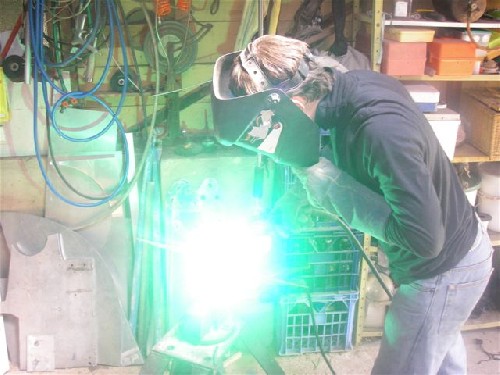

Chris welding up a section of the PAC
Chris circular-sawing a length of the aluminium load arm

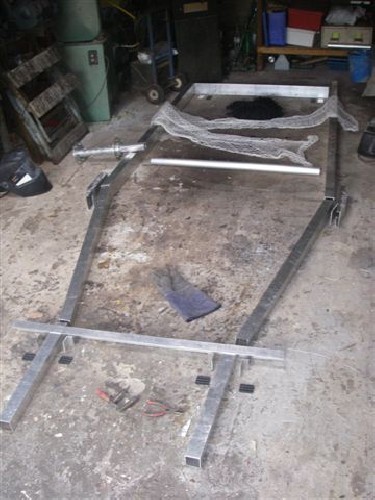

Getting there - PAC 2 frame so far
A dirty little chimney sweep
Clark and EMP guys watching the first test rim infuse
The resin flowing down and infusing into the rim mould

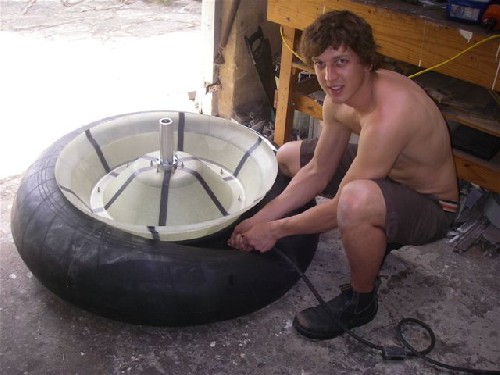

Clark pumping up the tire on the test rims

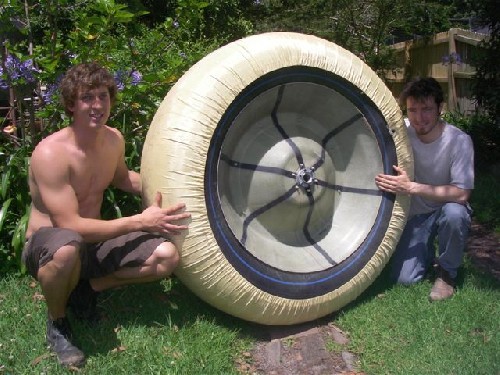

Looking good! The test rims are the perfect shape!

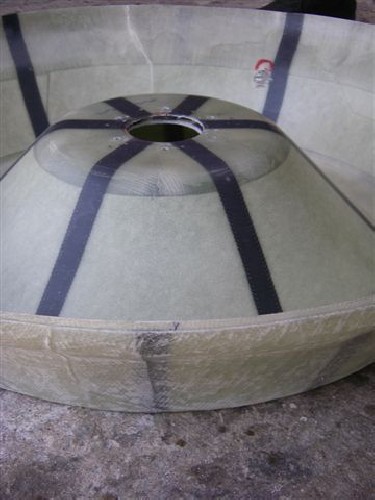

Check out how well 2 half rims stack together for shipping!

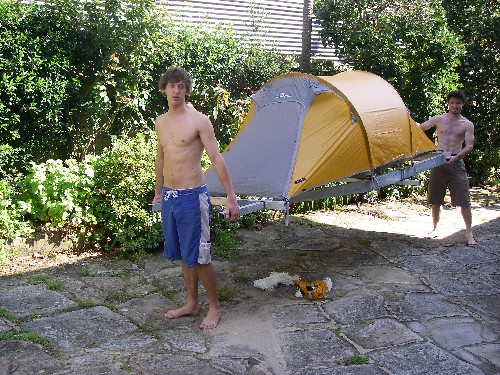

Holding up PAC with tent set up

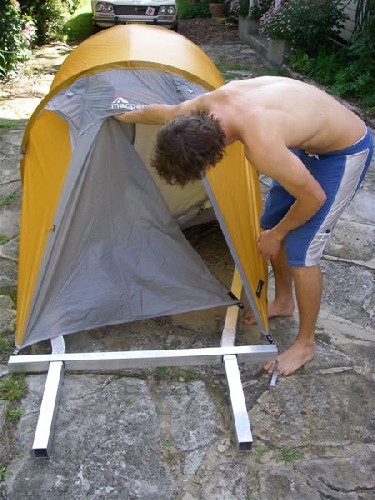

Clark looking inside tent on PAC
Clark painstakingly stitching together netting
Chris drilling holes for netting attachments

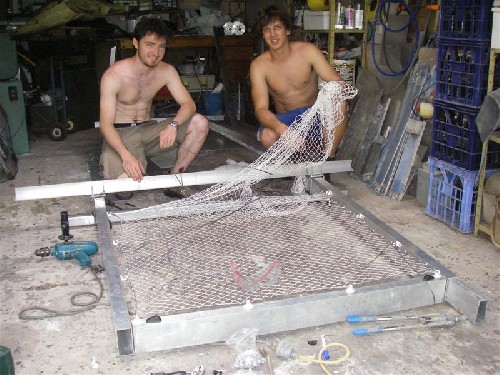

Clark and Chris testing netting for PAC 2 design

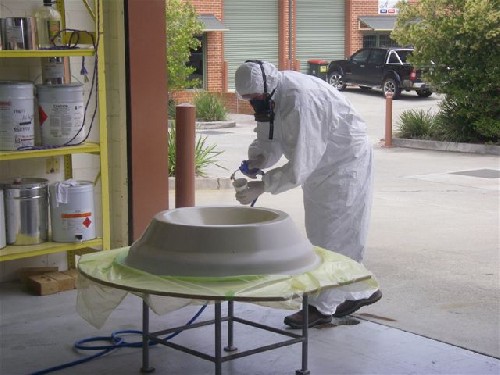

Lachlan from EMP spraying the gellcoat on the rim mould

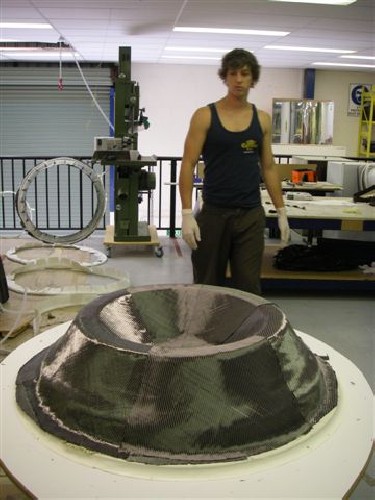

Carbon fibre cloth wrapped around the rim ready for infusing
Chris cutting out bolt washer rings from sheet of carbon fibre
Clark sewing hem onto test fabric for PAC2

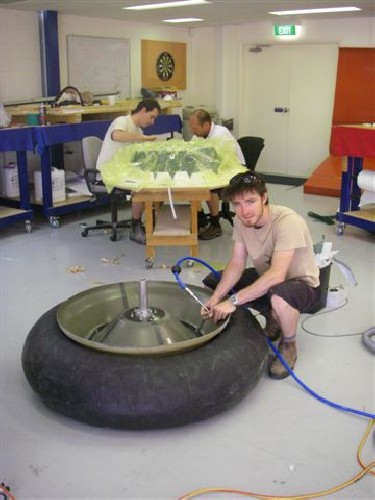

Chris blowing up the wheel around the first rim

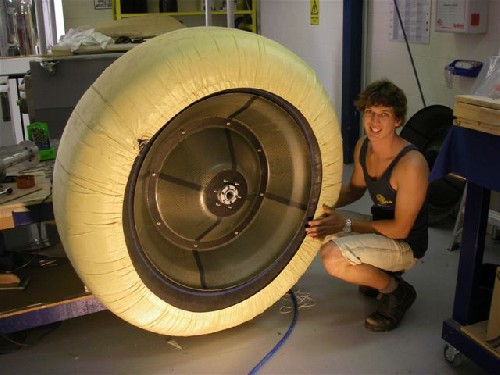

Clark crouched beside the first completed wheel for the PAC2

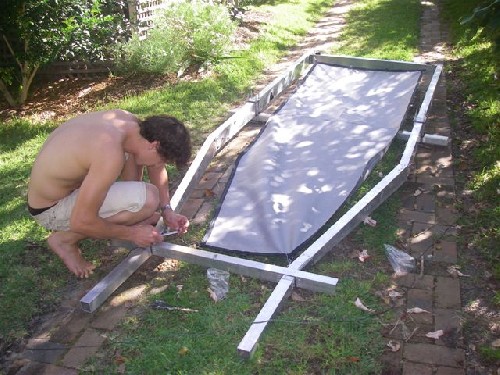

Clark tying the fabric flooring onto the PAC frame

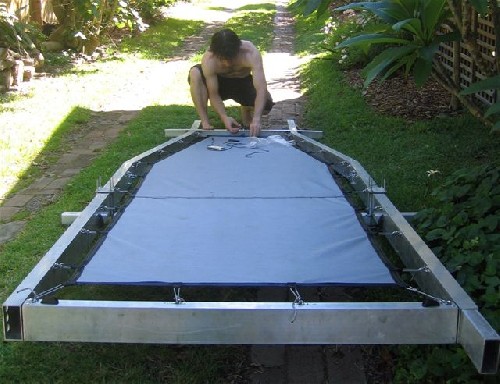

Chris hooking on the material skin that the tent will sit ontop of on the PAC.

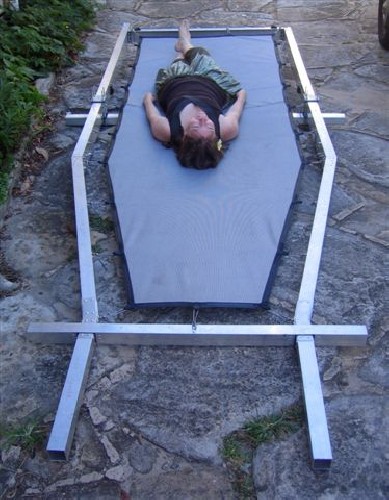

Chris\'s sister Sarah posing on the completed PAC fabric cover

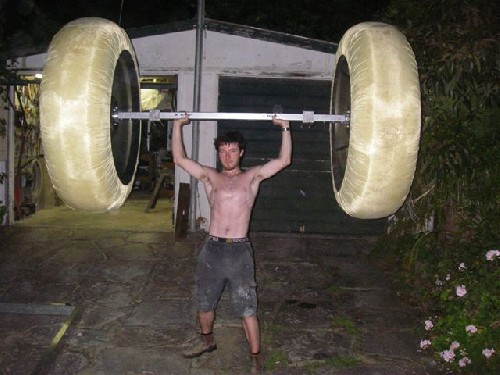

Chris holding up a completed PAC2 axle with finished wheels
Clark with our first semi-completed PAC2

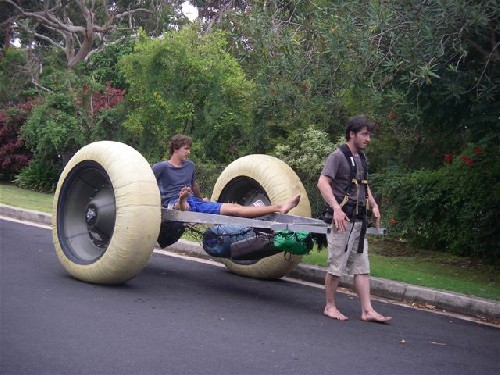

Chris hauling the PAC2 with about 220kgs of load ontop (including Clark)

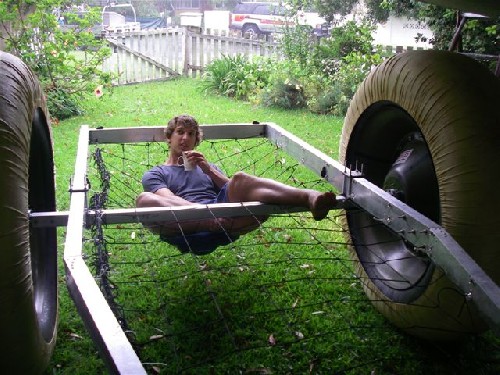

Clark lazing back in the bag-netting, sipping a mug of tea

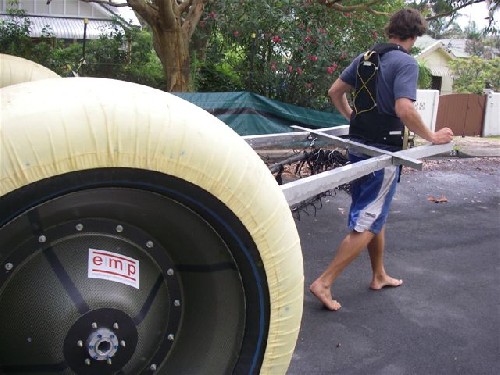

Clark hauling the PAC2 along the road - nice EMP sticker there on the rims!

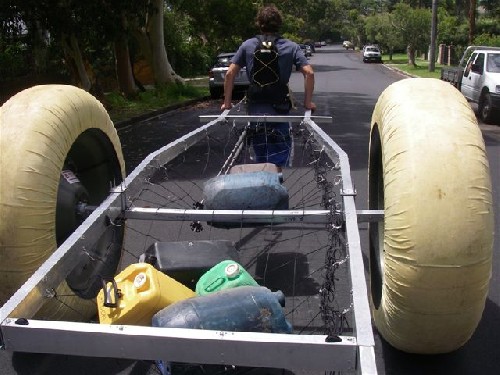

Clark hauling the new PAC along the road

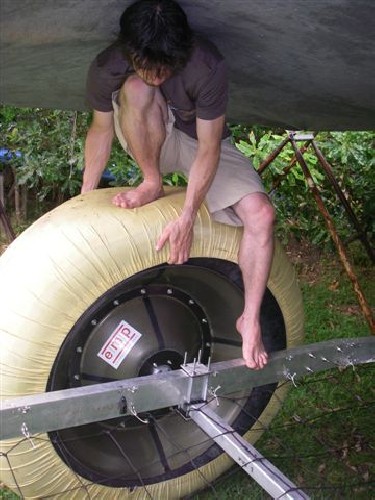

Chris testing to see how the new carbon/kevlar rims made my EMP flex under load

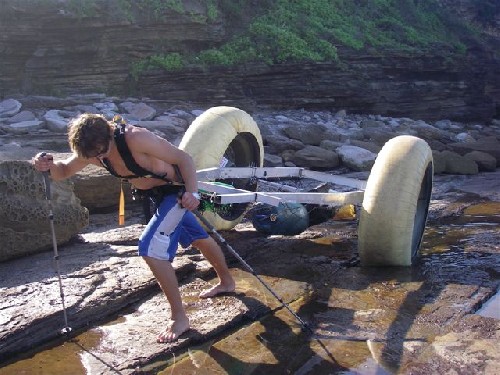

Clark hauling the PAC2 over rocks at Avalon Beach

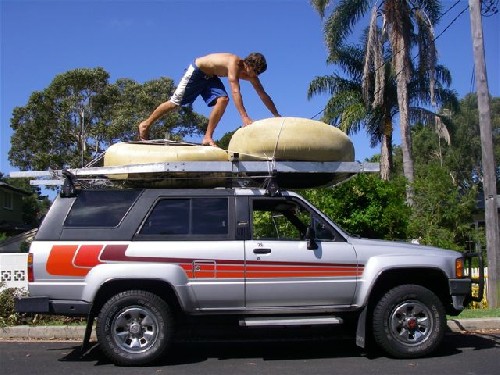

Clark lashing the PAC2 onto the roof racks

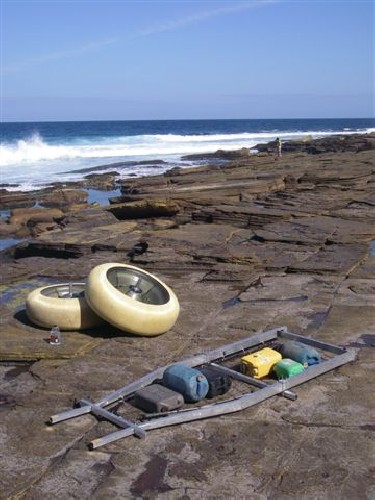

PAC2 frame with Kevlar/Carbon wheels beside it
Chris hauling PAC2 over rocks

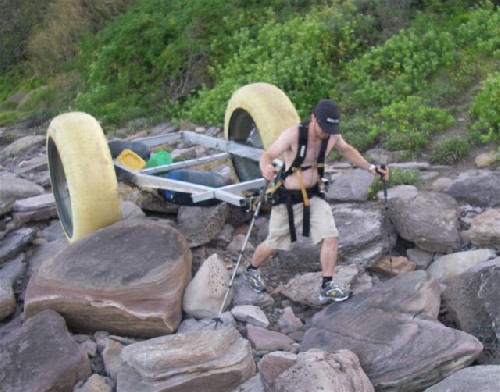

Chris hauling the PAC2 over some pretty serious boulders
Testing our cart and gear in -38deg C warehouse freezer

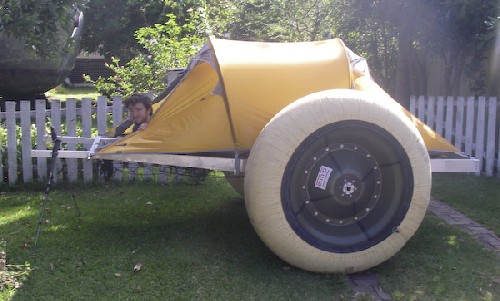

PAC2 with tent ontop
Chris holding up the cool little Asus Eee PC laptop in the warehouse freezer

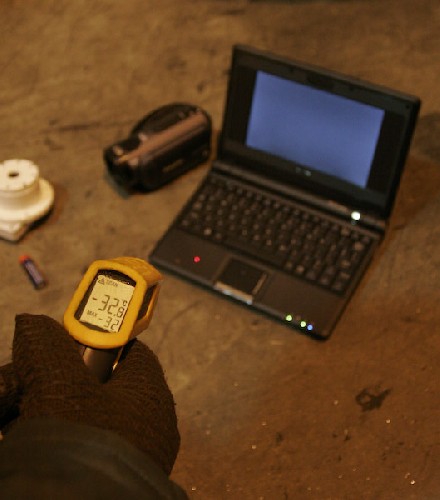

The laptop, video camera and bear alarm working at -32.8 deg C
Clark showing the PAC2 - netting for bags underneath, silver fabric over the top for the tent to sit on
Stick tries to poke into PAC2 wheels as Chris hauls past
Clark wading PAC2 through swamp
Tent set up ontop of PAC2
Chris hauling PAC2 along 4wd track
Clark hauling PAC2 into the distance
Chris sewing Kevlar covers for PAC2 tyres

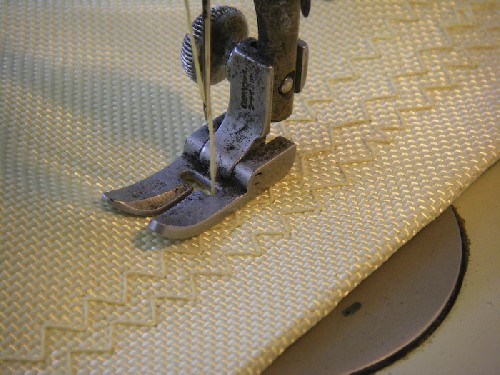

Tripple row of Kevlar stitching on Kevlar PAC covers

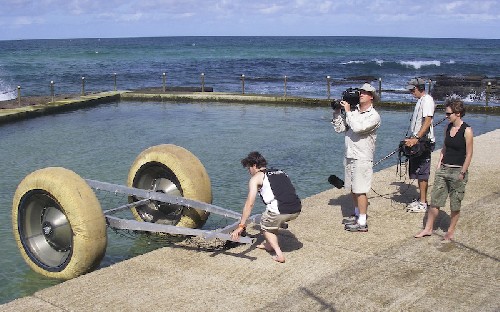

Chris testing if the PAC2 floats in Avalon pool as Discovery Channel film
Chris and Clark explaining our fancy rims to Discovery Channel film crew
Chris welding together last bits of PAC2 frame
Chris hauling PAC2 towards the Discovery Channel film crew
Us with our composite rims and carbon hard tops
Our carbon-fiber hard-top for the PAC2s
Clark spray painting our PAC2s
Stabbing PAC2 tire with screwdriver
Chris and Clark working on sponsor logo banner
Chris putting sponsor banner on PAC
Clark hosing down PAC2
